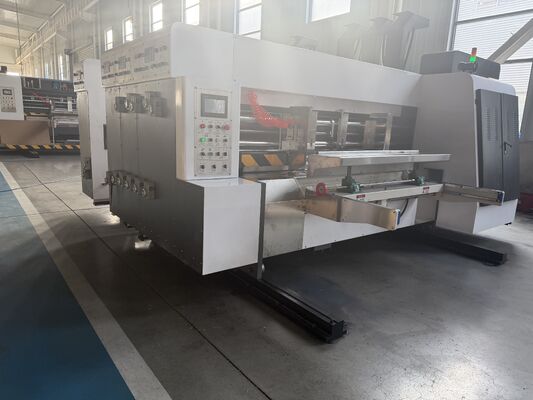

Automatic Corrugated Carton Flexo Printing Machine with 130 pcs/min Speed, Durable Components, and Stable Frame Structure

1 Σετ
MOQ
To be negotiated
τιμή
Automatic Corrugated Carton Flexo Printing Machine with 130 pcs/min Speed, Durable Components, and Stable Frame Structure
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Εγγύηση: 1 Έτος
Τύπος: Αυτόματο
Ταχύτητα: 100-130 τμχ/λεπτό
Χρήση: Αυλάκωση εκτύπωσης
Χρώμα: Λευκό, Μαύρο
Τύπος συσκευασίας: Πλαστική μεμβράνη
Βασικές πληροφορίες
Τόπος καταγωγής: Hebei, Κίνα
Μάρκα: GR
Πιστοποίηση: CE,ISO
Αριθμό μοντέλου: GYM920
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Ξύλινη συσκευασία θήκης (προαιρετικά) ή καλά συσκευασμένη πλαστική μεμβράνη
Χρόνος παράδοσης: 30-60 ΗΜΕΡΕΣ
Όροι πληρωμής: L/C,T/T,Western Union
Δυνατότητα προσφοράς: 10 σετ/μήνα
Περιγραφή προϊόντων
Corrugated Carton Flexo Printing Machine Featuring Durable Components and Stable Frame Structure for Long Term Operation
The GYM-920 Automatic Lead Edge Feeding Flexo Printing Rotary Slotting Machine represents advanced manufacturing technology for corrugated carton production, combining precision printing, slotting, and die-cutting capabilities in a single, efficient system.
Automatic Corrugated Carton Flexo Printing Machine with 130 pcs/min Speed, Durable Components, and Stable Frame Structure 0
Feeding Unit
Advanced Paper Feeding Technology
  • Taiwan Province leading edge paper feeding technology with bearing steel paper feeding wheel shafts
  • 7-inch color touch screen HMI for communication between feeding, printing, slotting, and die-cutting sections
  • Suction fan assisted paper feeding with frequency converter controllable motor for power efficiency
  • Leading edge cardboard positioning reduces length error impact
  • Electric adjustment for left/right stop gauges and cardboard dragging frame
  • One-button positioning with safety alarm system and pneumatic interlocking
  • High-quality seamless steel pipe lower rollers with dual-layer rubber coating
Printing Unit
Printing Plate Roller
  • Diameter: ￠295mm (including plate diameter ￠305mm)
  • High-quality steel construction with hard chromium plating
  • 360° electric circumferential adjustment during operation or stop
  • Automatic zeroing and plate hanging position features
Impression Roller
  • High-quality seamless steel pipe with precision grinding and electroplating
  • Backlash-free adjustment mechanism for transmission accuracy
  • Manual micro gap adjustment with scale display (0-12mm range)
Automatic Corrugated Carton Flexo Printing Machine with 130 pcs/min Speed, Durable Components, and Stable Frame Structure 1
Metal Anilox Roller
  • Cantilever structure for easy installation and maintenance
  • Manufactured by "Haili Roller" with mesh options: 200, 220, 250, 280 lines/inch
  • Pneumatic pressing action with automatic lifting
  • Optional ceramic net roller (200-400 lines/inch) available
Rubber Roller
  • High-quality seamless steel tubes with Ding Qing rubber surface
  • Precision CNC grinding for accuracy
  • 1:200 double-stage worm gear fine adjustment
Ink Supply System
  • One-way diaphragm type pneumatic ink pump with filtration
  • Automatic ink quantity detection with alarm system
  • Transparent ink supply pipes and storage cups
Slotting Unit
Automatic Corrugated Carton Flexo Printing Machine with 130 pcs/min Speed, Durable Components, and Stable Frame Structure 2
Touch Screen Operation Control
  • PLC programming automation system with data input for paper product dimensions
  • One-button automatic positioning with manual fine-tuning capability
  • Taiwan Province Delta frequency converter motor control
Six-Axis Computer-Controlled Slotting
  • Single-shaft double-knife slotted structure with internal tooth design
  • 7mm standard thickness grooving knives with alloy steel material
  • Linear guide rail technology for precision slotting
  • Ten-screw automatic adjustment system
Pre-pressing and Line Pressing
  • High-quality steel upper and lower shafts with dynamic balance
  • Four groups of line pressing wheels to prevent cardboard crushing
  • Manual gap adjustment with 2-12mm range
Die-cutting Unit
Automatic Corrugated Carton Flexo Printing Machine with 130 pcs/min Speed, Durable Components, and Stable Frame Structure 3
Knife Plate Roller
  • Outer diameter: ￠260mm (including template diameter < ￠536mm)
  • High-quality cast steel with surface grinding and balance correction
  • 10M bolt holes with 100mm axial spacing
  • Die cutter height: 25.4mm
Rubber Roller (Upper Roller)
  • Diameter: < ￠295.5mm (rubber pad diameter: 311.5mm)
  • Quick-change rubber pad with wear resistance
  • Electric gap adjustment with air-lock mechanism
  • 50mm transverse traveling device for even wear
Drive System Components
  • High-precision helical gear transmission with 20GrMnTi alloy steel
  • Keyless tensioning connecting sleeve for zero-gap operation
  • Automatic spray lubrication system
  • "Dongli" frequency converter main motor with Taiwan Province Delta controller
  • NSK imported main bearings with Wahalo domestic bearings
  • Zhejiang Zhengtai or Schneider electrical components
Technical Parameters
Working Speed 130 pcs/min
Max Feeding Board Size 900*2100 mm
Min Feeding Board Size 250*600 mm
Maximum Printing Area 900*2000 mm
Standard Plate Thickness 7.2 mm
Adapted Paperboard Thickness 1-12 mm
Printing Precision ±0.5 mm
Slotting Precision ±1.5 mm
Die Cutting Precision ±1 mm
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Complete set of maintenance and operation manuals included
Automatic Corrugated Carton Flexo Printing Machine with 130 pcs/min Speed, Durable Components, and Stable Frame Structure 4
Our Services
Q: How is the warranty of the machine?
A: Warranty period: 12 months from shipping date. Warranty excludes misuse, accidental damage, or operator error. During warranty, we supply spare parts. Contact us for detailed support via photos and videos.
Q: How about the after-sale service?
A: 24/7 online support via Email, Skype, WeChat, WhatsApp. Problem resolution through videos/pictures. One year warranty for spare parts replacement.
Q: Is payment safe for first-time cooperation?
A: Video verification at every production link guarantees product receipt. We accept various safe payment methods as required.
Q: What is your minimum order quantity? Can you send samples?
A: Minimum quantity: 1 set. As machinery equipment, samples are not feasible. We provide detailed specifications, videos, and comprehensive product information.
